IP Rating Overview

24 Aug. 2016   Information

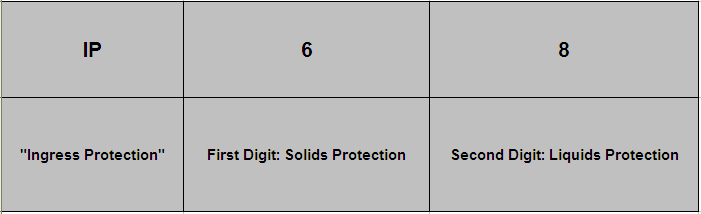

Sample IP Rating

Ingress Protection (IP)
The IP Code, International Protection Marking, IEC standard 60529, sometimes interpreted as Ingress Protection Rating, consists of the letters IP followed by two digits and an optional letter. As defined in international standard IEC 60529, it classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures. The standard aims to provide users more detailed information than vague marketing terms such as waterproof.
The standard aims to provide users more detailed information than vague marketing terms such as waterproof. The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no data available to specify a protection rating with regard to one of the criteria, the digit is replaced with the letter X. The digit 0 is used where no protection is provided.

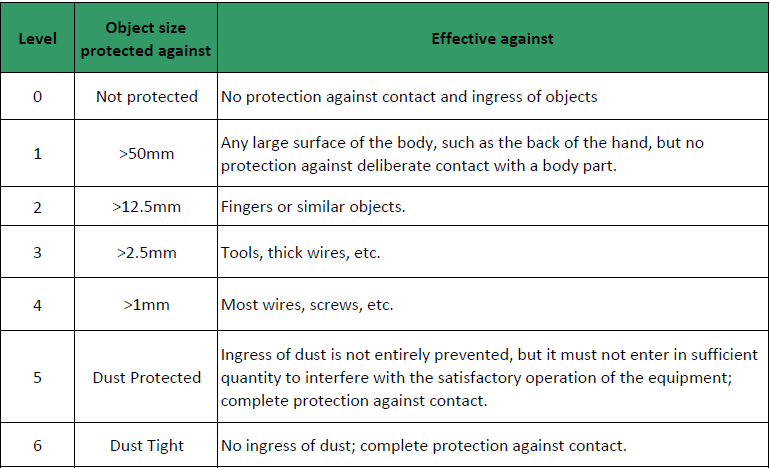

First Digit: Solids
The first digit indicates the level of protection that the enclosure provides against access to hazardous parts (e.g., electrical conductors, moving parts) and the ingress of solid foreign objects.

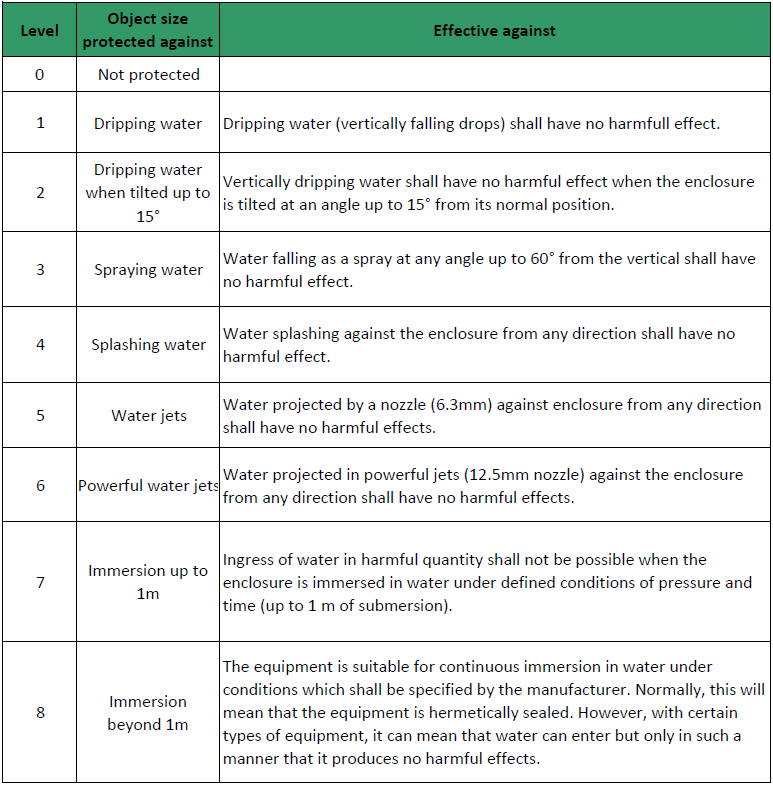

Second Digit: Liquids
Protection of the equipment inside the enclosure against harmful ingress of water.



(Source: dsmt.com )
