HQT Analog Series TH-2880

HQT MID-END ANALOG SERIES TH-2880

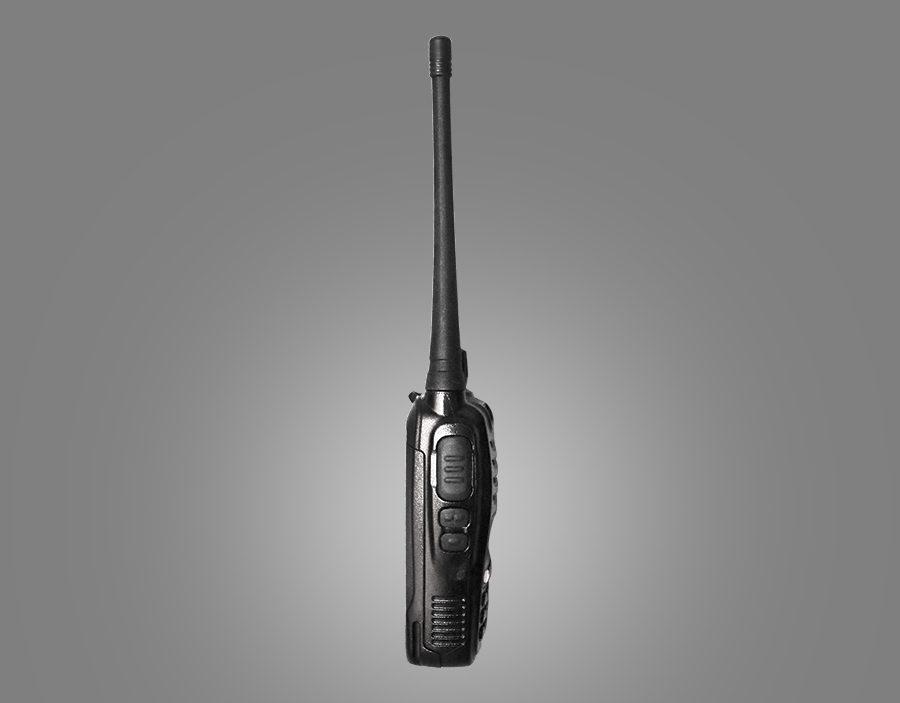

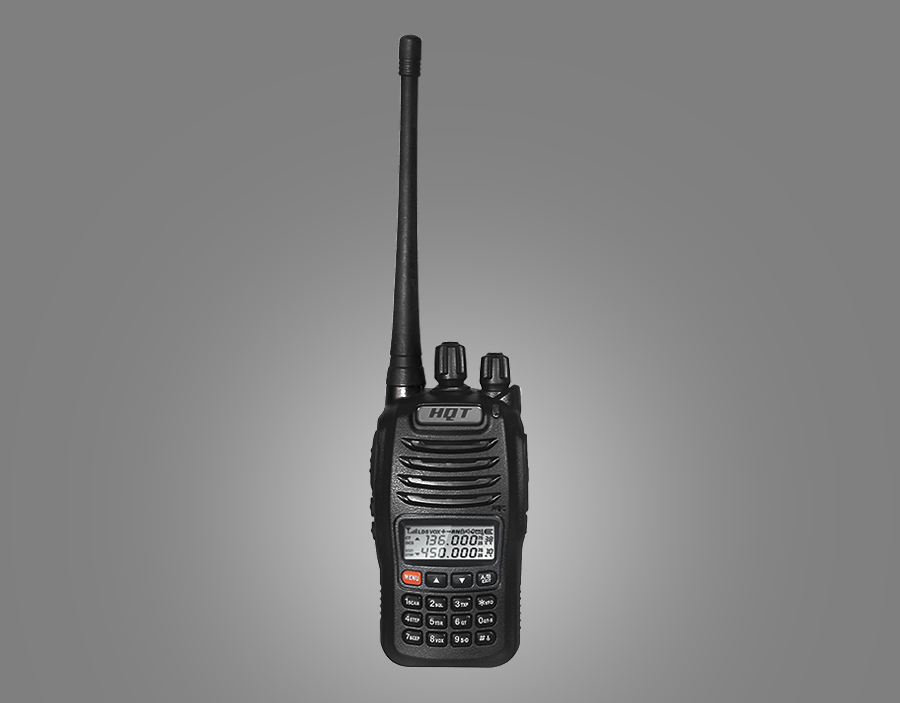

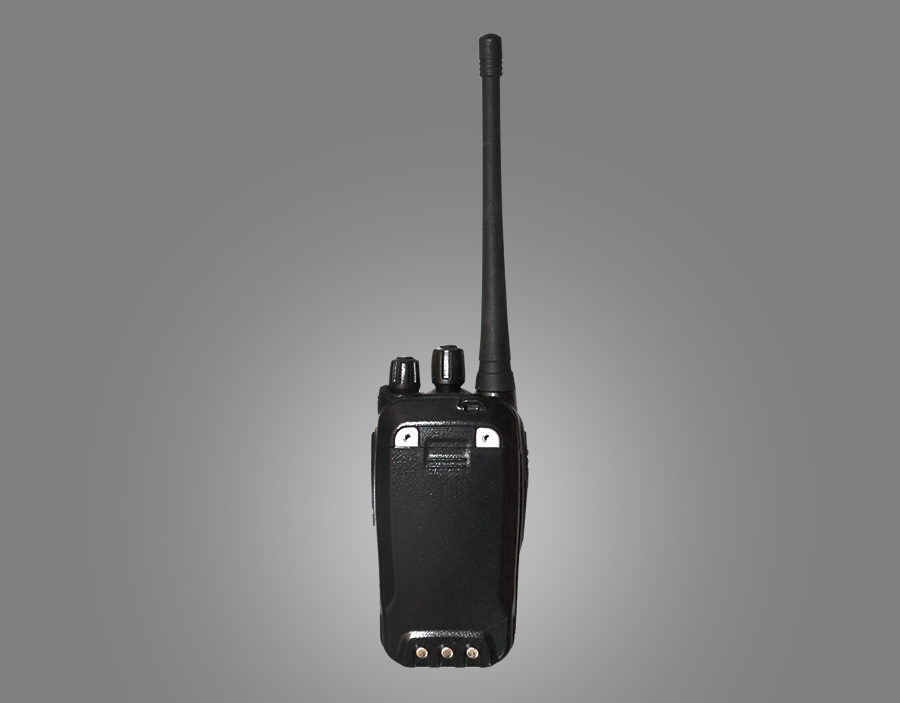

HQT TH-2880 is a powerful two-way radio. It embeds a LCD screen to display necessary information, such as signal level, current channel frequency, remaining battery, etc. Keypad design makes it easy to operate. Users can get channels by either scanning function or entering channels’ name directly. Its advanced audio process technique and ergonomic shape design make it so different from others. TH-2880 also provides a few higher level functions, such as long standby period, VOX, power switch, etc.

Scan;
VOX;
VFO/MR;
ID Encode;
CTCSS/CDCSS;
Programmable Keys;
Keypad Lock/Unlock;
Busy Channel Lockout (BCL).

TI OMAP SERIES is recommended for customized needs and requirements.

Please contact our sales consultants for more product information. Get Support >>

VOX
This function allows users to talk without pressing PTT key.
CTCSS / CDCSS
Unique CTCSS / CDCSS are useful for group users to avoid unwanted eavesdropping on the same channel.
Keypad Lock/Unlock
PTT and the middle function key can be used only when the keypad lock function is on. This can prevent users from pressing by mistake.
Scan
TH-2880 provides two channel scanning modes which are TO (time operation) and CO (carrier operation). Users scan by the two different modes according to different situations.
BCL (Busy Channel Lockout)
It stops users starting talking if there is any conversation on going.
VFO/MR
TH-2880 has two main work modes, VFO and MR. Users can enter a certain channel frequency to get into the channel in VFO mode. In MR mode, users can get into the channel by either entering channel's frequency or channel's name.

General
Frequency Range	U/V: 400-470MHz/136-174MHz
Channel Capacity	199
Channel Spacing	25.0kHz / 12.5kHz
Frequency Stability	±1.5ppm
Operating Temperature	-25℃ ~ +55℃
Antenna Impedance	50Ω
Operating Voltage	7.4V
Dimensions (H×W×D)	118×62×35mm
Weight (With Antenna & Battery)	230g
Battery	1600mAh
Receiver
Sensitivity	0.20μV(25kHz) / 0.22μV(12.5kHz)
Adjacent Channel Selectivity	60dB@12.5kHz / 70dB@25kHz
Intermodulation Rejection	65dB
Spurious Response Rejection	70dB
S/N	40dB@12.5kHz / 45dB@25kHz
Rated Audio Power Output	≥900mW
Rated Audio Distortion	≤5%
Transmitter
RF Power (H/L)	UHF High Power: 4W/ Low Power: 1W VHF High Power: 5W/ Low Power: 1W
Modulation Type	16KΦF3E / 8KΦF3E
Modulation Limiting	≤2.5kHz @ 12.5kHz ≤5kHz @ 25kHz
FM Distortion	≤5%
Residual FM	40dB @ 12.5kHz / 45dB @25kHz
Adjacent Channel Power	-60dB
Spurious and Harmonics	≤-36dBm(<1GHz)/-30dBm(>1GHz)

All specifications are tested according to applicable standards and subject to changes without notice due to continuous development.

Accessory List

Standard Accessories
Antenna	Battery	Charge Adapter	Desktop Charger	Belt Clip	Hand Strap
Optional Accessories
Earphone	Remote Microphone		Programming Cable		Clone Cable
